Rail geometry measurement

WearCheck

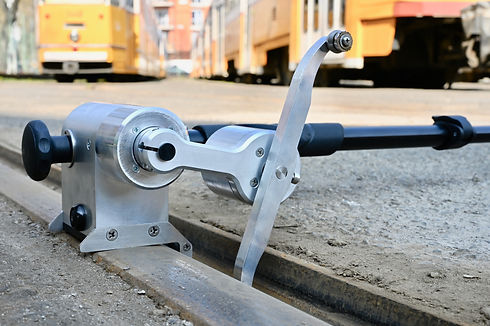

Rail height and side wear measuring device

  • The instrument measures rail height and side wear and it can be easily operated by hand

  • It measures the directing surface's amount of wear value at 14 mm below from the plane determined by the running surface

  • The device can be easily attached to the rail base surface and fixes itself with magnets built into its sole part

  • One device is capable of measuring different rail types



WearCheck45

Rail height and side wear measuring device

  • The instrument is easy to use, hand operated rail height and side wear measuring device

  • It measures the wear value of running surface on the radius in 45 degree

  • The device can be easily fixed on the surface of rail base with built in magnets

  • One device is capable of measuring several rail types

  • The measured value can be checked on Vernier scale

  • It can be applied on guard rails as well



RPCS Rail

Rail Profile Contact Scanner

  • Checking the manufactured rail profile at delivery,

  • Periodic checking of rail wear for planning maintenance,

  • Measuring eliminated material and measuring the profile during grinding activity

  • The double measuring bar provides the possibility of measuring rails with extreme wear

  • The profile measurement can be done on most of the rail types e.g. on Vignol and Phoenix rails as well

Képernyőfotó 2022-07-21 - 18.33.46.png

Képernyőfotó 2022-07-21 - 18.22.35.png

RPCS Rail & Frog

  • Checking the manufactured frog profile at delivery,

  • Periodic checking frog wear for planning maintenance,

  • Measuring eliminated material and measuring the profile during grinding activity

  • The double measuring bar provides the possibility of measuring frogs with extreme wear

  • Profile measurement can be performed on most types of crossing

Rail Profile Contact Scanner

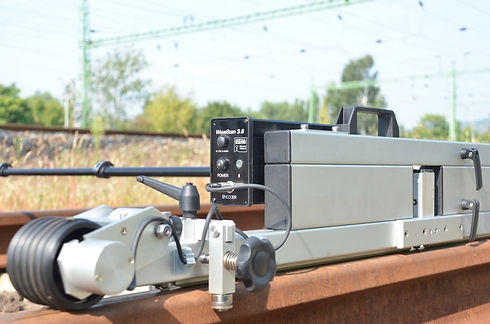

WaveScan 3.6

Corrugation measuring device

  • It is suitable for measuring the corrugation on the running surface corrugation

  • It consists a measuring beam and connecting a hand held computer

  • Evaluating measuring results and printing protocols can be done by the office’s software



WaveScan Dual

Corrugation measuring device

  • It is suitable for measuring the running surface's corrugation on both rails simultaneously

  • It consists two measuring beams and a hand - held computer

  • Evaluating measuring results and printing protocols can be done by the office’s program according to the
    EN 13231-3 Standard



CRG

Checking pattern for rails

  • Pattern set for checking of rail profiles at delivery
    according to EN 13674-1:2011+A1:2017 standard

  • Checking pattern sets ease quick and professional geometric checks

  • The patterns are made of stainless material

  • One set has 17pieces of patterns

CRG sínellenőrző sablonkészlet.jpeg
